5 Axis CNC Machining Services for Complex, High-Precision Parts
IATF 16949:2016 certified 5 axis CNC machining for metals and plastics. Machine up to five sides in a single setup, from prototype to full production.
What Is 5 Axis CNC Machining?

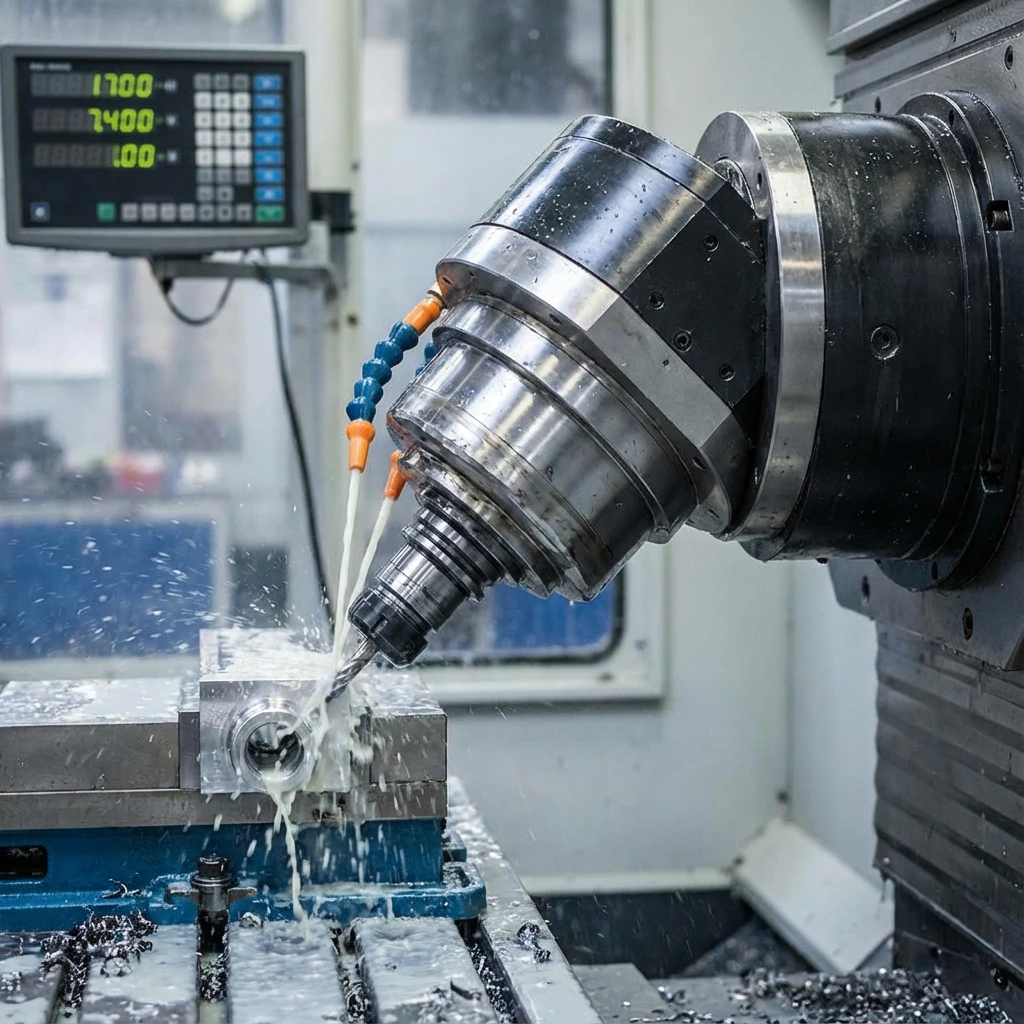

5 axis CNC machining is a manufacturing process where a cutting tool moves across five different directions at the same time. In addition to the standard left-right (X), forward-back (Y), and up-down (Z) movements, the machine also rotates the tool or the part along two extra axes (A and B). This means the cutter can reach almost any angle on the workpiece without stopping to reposition it.
The result is that complex shapes like curved surfaces, deep pockets, undercuts, and angled holes can all be cut in a single setup. There is no need to unclamp the part, flip it over, and re-align it. This "done in one" approach saves time, removes the chance of alignment mistakes between setups, and produces tighter tolerances of up to ±0.005 mm.
5 axis machining is one of several precision processes Meco performs as part of our custom CNC machining services. We also offer 3 axis CNC for simpler flat parts and 4 axis CNC for multi-sided components. All work runs under our IATF 16949:2016 quality system with full material traceability from start to finish.
Why 5 Axis CNC Machining for Your Parts
5 axis machining is the go-to process for parts that are too complex for standard machines. It handles curved surfaces, compound angles, and deep cavities that would normally need multiple setups on a 3 axis machine. It is the standard choice for aerospace, medical, and high-performance automotive components.
Why Choose Meco for 5 Axis CNC Machining
Complex parts, simple supply chain. One partner from prototype to delivery.
Ultra-Precision: ±0.005 mm
Simultaneous 5 axis motion holds tolerances that 3 axis machines simply cannot reach. CMM inspection to ±0.002 mm confirms every critical dimension.
Vertically Integrated
Machining, surface finishing, heat treatment, and assembly under one roof. One PO, one quality system, shorter lead times.
Any Material, Any Volume
Aluminum, titanium, stainless steel, carbon steel, brass, copper, plus Nylon, Delrin, and PEEK. From 10 pieces to 10 million+. No minimum order.
DFM Before Cutting
Our engineers review your CAD files for tool access, wall thickness, and tolerance stacking before production starts. This catches issues early and saves 15-30% on part cost.
Our 5 Axis CNC Machining Capabilities
Both simultaneous and positional (3+2) machining modes to match your part complexity and budget.
Simultaneous 5 Axis
All five axes move at the same time during cutting. This is required for sculpting organic shapes like turbine blades, impellers, and medical implants where the tool must continuously change angle along a curved path.
- Organic contours and freeform surfaces
- ±0.005 mm ultra-precision
3+2 Positional Machining
The two rotary axes lock at a fixed angle, then the machine cuts using 3 axes. Think of it as tilting the part to a specific position and holding it there while the tool works. Great for angled holes, flat surfaces at compound angles, and multi-face parts.
- Angled holes and flat pockets
- Lower cost than full simultaneous
Superior Surface Finishes
By keeping the cutting tool at the best angle relative to the surface, 5 axis machining produces smoother results with less vibration. This means less secondary polishing or grinding, saving both time and money on finishing steps.
- Ra 0.4 microns achievable
- Reduces post-machining finishing
5 Axis CNC Materials and Specifications
Metals
| Aluminum | 6061, 7075, 5052, 2024 |
| Stainless Steel | 303, 304, 316, 17-4PH |
| Carbon Steel | 1045, 4140, 4340 |
| Titanium | Grade 2, Grade 5 (Ti-6Al-4V) |
| Brass | C360, C464 |
| Bronze | C932, C954 |
| Copper | C110, C145 |
Plastics
| PA (Nylon) | High toughness, wear resistant |
| POM (Delrin) | Low friction, dimensionally stable |
| PTFE (Teflon) | Ultra-low friction, chemical resistant |
| PMMA (Acrylic) | Optically clear, UV resistant |
5 Axis CNC Tolerances
| Class | 0.5-3 | 3-6 | 6-30 | 30-120 | 120-400 | 400-1000 | 1000-2000 | 2000-4000 |
|---|---|---|---|---|---|---|---|---|
| Fine (f) | ±0.05 | ±0.05 | ±0.10 | ±0.15 | ±0.20 | ±0.30 | ±0.50 | - |
| Medium (m) | ±0.10 | ±0.10 | ±0.20 | ±0.30 | ±0.50 | ±0.80 | ±1.20 | ±2.00 |
| Coarse (c) | ±0.20 | ±0.30 | ±0.50 | ±0.80 | ±1.20 | ±2.00 | ±3.00 | ±4.00 |
| V. Coarse (v) | - | ±0.50 | ±1.00 | ±1.50 | ±2.50 | ±4.00 | ±6.00 | ±8.00 |
| Class | ≤10 | 10-50 | 50-120 | 120-400 | >400 |
|---|---|---|---|---|---|
| Fine (f) | ±1° | ±0°30′ | ±0°20′ | ±0°10′ | ±0°5′ |
| Medium (m) | ±1°30′ | ±1° | ±0°30′ | ±0°15′ | ±0°10′ |
| Coarse (c) | ±3° | ±2° | ±1° | ±0°30′ | ±0°20′ |
| Class | 0.5-3 | 3-6 | >6 |
|---|---|---|---|
| Fine (f) | ±0.20 | ±0.50 | ±1.00 |
| Medium (m) | ±0.40 | ±1.00 | ±2.00 |
| System | Description |
|---|---|
| Hole Basis | Hole size fixed (H), shaft varies. Preferred for standard tooling. |
| Shaft Basis | Shaft size fixed (h), hole varies. Used with standard shafts. |
| Fit | Type | Application |
|---|---|---|
| H7/g6 | Clearance | Precision sliding fit |
| H7/h6 | Trans/Clear | Accurate location |
| H7/p6 | Interference | Press fit (force req) |
3, 4 and 5 Axis CNC: Key Differences
Not sure which axis count your part needs? Use this comparison to match your geometry and budget to the right machining process.
| Feature | 3 Axis CNC | 4 Axis CNC | 5 Axis CNC |
|---|---|---|---|
| Axes of Motion | Linear X, Y, Z | X, Y, Z + Rotary A | Simultaneous X, Y, Z, A, B |
| Best For | Flat surfaces, simple pockets | Cylindrical parts, side slots | Organic curves, undercuts, deep pockets |
| Setups Needed | Multiple (manual repositioning) | Fewer (rotary indexing) | Single setup ("Done in One") |
| Precision | ±0.01 mm | ±0.01 mm | ±0.005 mm |
| Surface Finish | Good (Ra 1.6-3.2 microns) | Good (Ra 1.6-3.2 microns) | Excellent (Ra 0.4 microns) |
| Typical Industries | General hardware, electronics | Fluid systems, robotics | Aerospace, defense, medical implants |
| Cost Per Part | Lowest | Moderate | Higher (justified by complexity) |
Need Simpler Parts?
Not every part needs 5 axes. Our 3 axis and 4 axis CNC services handle flat, prismatic, and multi-sided parts at lower cost. We help you pick the right process during DFM review.
5 Axis CNC Machined Parts for Critical Industries
Complex, high-tolerance components machined in a single setup for the world's most demanding applications.
Aerospace Parts Manufacturing
5 axis machining produces flight-critical parts like turbine blades, impellers, structural brackets, and avionics housings from solid billets of titanium and aluminum. Simultaneous motion creates accurate aerodynamic profiles while single-setup machining keeps dimensions consistent across every surface.
Automotive Parts Manufacturing
5 axis CNC machines engine manifolds, turbocharger housings, lightweight suspension knuckles, and EV battery tray components. The ability to cut angled bores and complex internal channels in one cycle reduces weight and improves performance of critical powertrain and chassis systems.
Medical Equipment Manufacturing
Simultaneous 5 axis milling creates the organic contours needed for orthopedic implants, prosthetic joints, and surgical instruments. Machining titanium and stainless steel from every angle achieves smooth, biocompatible surfaces without extensive manual polishing.
Heavy Equipment Manufacturing
For large gear casings, hydraulic manifolds, and structural bases, 5 axis machining processes multiple faces of heavy parts without manual repositioning. This ensures precise alignment of bores and mounting points for mining, construction, and agricultural machinery.
Industrial Manufacturing
5 axis CNC produces complex couplings, custom clamps, and automation components with internal channels and undercuts. Multi-sided machining in a single setup delivers the repeatability needed for high-speed robotics and industrial machinery.
Consumer Electronics
5 axis machines compact unibody housings and enclosures from multiple angles in a single setup. This creates seamless fits, chamfered edges, and the premium aesthetic finishes required for modern devices, wearables, and audio equipment.
Telecommunications Manufacturing
5 axis machining mills complex RF housings and antenna cavities with deep, intricate features in a single operation. This eliminates alignment errors between setups, ensuring superior signal performance and seamless environmental sealing for 5G infrastructure.
Lighting Manufacturing
Complex heat sinks and reflector housings with multi-angled fins are machined with high efficiency. 5 axis technology allows the tool to reach deep recesses, ensuring maximum thermal dissipation and optical precision for high-end LED fixtures.
Home Appliances Manufacturing
5 axis CNC machines brackets, handles, and functional components with complex curves and precise cutouts for premium home appliances. The efficiency of single-setup machining delivers cost-effective production at scale.
Commercial Furniture
5 axis machining creates ergonomic components and architectural hardware with fluid, organic shapes. Durable structural joints and decorative mounts combine load-bearing strength with sophisticated modern design aesthetics.
Quality Assurance and Documentation
Every 5 axis machined part ships with full traceability and documentation. Our IATF 16949:2016 quality management system governs every process from raw material receiving through final dimensional inspection and packaging.
CMM Inspection
Coordinate Measuring Machine verification to ±0.002 mm. Full GD&T evaluation with graphical deviation reports for every critical dimension.
First Article Inspection
FAI reports with full dimensional verification of first production parts against your drawing. PPAP packages delivered on request.
Non-Destructive Testing
Ultrasonic, dye penetrant, and X-ray inspection for safety-critical aerospace, defense, and medical components. Certified results included.
Full Traceability
Lot-level tracking from raw material through every machining, finishing, and assembly step. Material certificates and COA included with every shipment.
5 Axis CNC Machining FAQ
What is 5 axis CNC machining?
5 axis CNC machining is a process where a cutting tool and workpiece move across five directions at the same time (X, Y, Z plus two rotary axes). This lets the tool reach almost any angle on the part, so complex shapes like curved surfaces, undercuts, and deep pockets can all be cut in a single setup without stopping to reposition.
What is the difference between 3+2 and simultaneous 5 axis?
3+2 (positional) locks the two rotary axes at a fixed angle, then cuts using three axes. It is best for angled holes and flat features at compound angles. Simultaneous 5 axis moves all five axes at the same time during cutting. It is required for sculpting organic shapes like turbine blades, impellers, and medical implants.
What materials can be 5 axis machined?
Most metals and engineering plastics work well: aluminum, stainless steel, carbon steel, titanium, brass, bronze, copper, plus Nylon, Delrin (POM), PTFE, and acrylic (PMMA). The key is matching the right cutting tools and speeds to each material for the best surface finish and tool life.
What tolerances can 5 axis CNC achieve?
Standard 5 axis machining holds ±0.01 mm. For ultra-precision work (aerospace, medical implants), we achieve ±0.005 mm. CMM inspection to ±0.002 mm is available for verification of critical dimensions.
Is 5 axis machining more expensive than 3 axis?
The hourly machine rate is higher, but 5 axis often costs less per part overall. Because the part is machined in one setup instead of three or four, you save on fixture costs, setup time, and labor. For complex parts, the total project cost is frequently lower than running multiple setups on a 3 axis machine.
What industries need 5 axis machined parts?
Aerospace (turbine blades, structural brackets), medical (implants, surgical tools), automotive (turbo housings, EV components), defense, energy/turbine, and any application where complex geometry and tight tolerances are required. Meco serves 10+ industries from our IATF 16949:2016 certified facilities.
What file formats do you accept?
STEP (.stp) and IGES (.igs) for 3D models. PDF or DWG for 2D drawings with tolerances, GD&T callouts, material specifications, and surface finish requirements.
What certifications does Meco hold?
IATF 16949:2016 (this incorporates all ISO 9001:2015 requirements). Quality processes include APQP, PPAP, SPC, PFMEA, and FAIR. Inspection capabilities include CMM, NDT (ultrasonic, dye penetrant, X-ray), and full lot/serial traceability.
How fast can you deliver 5 axis parts?
Prototypes ship in 1-2 weeks. Tooling and fixtures take 3-6 weeks. Production quotes are returned in under 24 hours. Our facilities in Thailand (20,000 m2) and China (16,000 m2) with warehousing in the U.S., Canada, Japan, and Thailand support fast global delivery.
How to Get Started
Upload STEP/IGES files with material and tolerance requirements via our quote form. We respond in under 24 hours.
Our engineers analyze your geometry for machinability, suggest improvements to reduce cost, and deliver a detailed quote with DFM feedback.
We machine a first article part, run CMM inspection, and deliver a full dimensional report for your sign-off before volume production begins.
Full 5 axis production with in-process SPC and quality documentation. Scale from 10 pieces to 10 million+ with the same partner. Global warehousing and logistics included.
